GTAW TIG SERIES
WeldMatic India is a premier manufacturer of welding machines, headquartered in Ludhiana, Punjab, India. Renowned for delivering cutting-edge technology and unmatched quality, we also offer an advanced GTAW TIG Series, designed to meet the diverse needs of industrial and professional welding applications.
Our GTAW TIG Series is engineered for precision, versatility, and high-quality welds. These machines are equipped with the latest technology to provide clean, accurate, and durable welds on a variety of materials. With features like adjustable welding parameters, high-frequency start, and pulse functionality, the GTAW TIG Series ensures top-tier performance, especially for thin or intricate materials.
FUNCTIONS
· TIG High Frequency, Manual Metal ARC Welding.
INDUSTRIES
· Heavy Industrial Fabrication
· Oil & Gas Industries Fabrication
· Industrial Maintenance
· Automobile Industries
· Pipe Line Welding
· Stainless Steel Fabrication
· Process Industries
· Cement Industries
· Ship Building yard
· Stainless Steel Tube Mill.
|
PARAMETERS |
MACHINE MODELS |
||
|

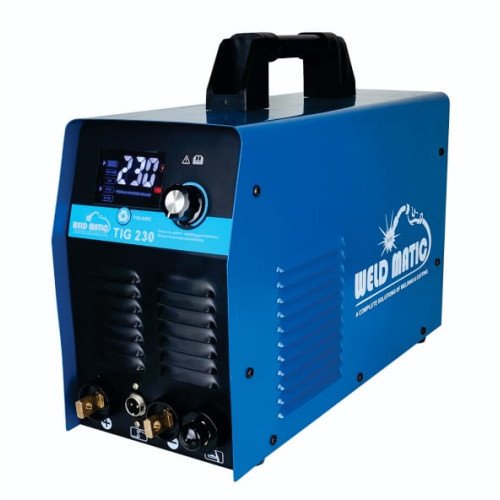

TIG/MMA 230 |

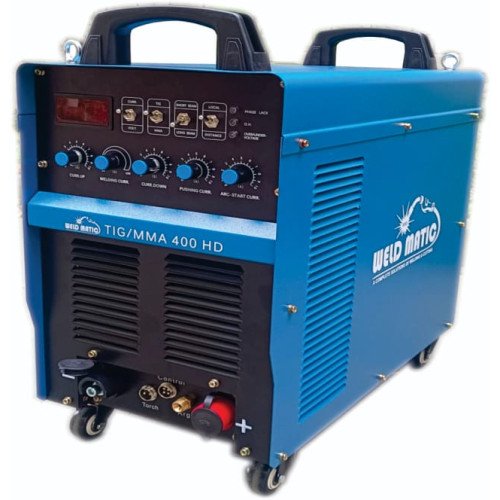

TIG/MMA 400 |

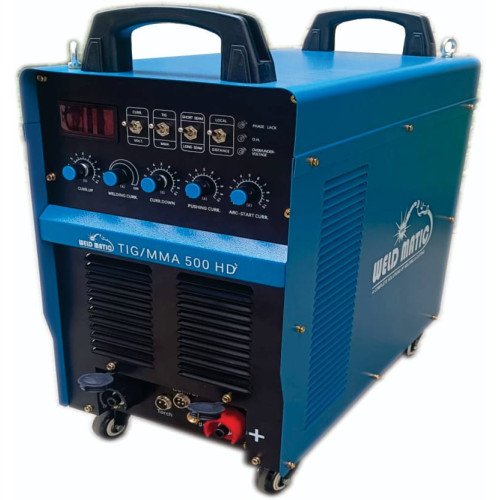

TIG/MMA 500 |
|
|
Input Voltage
(V) |
1Ph. 220± 10% |
3Ph. 415± 10% |
3Ph. 415± 10% |
|
Frequency (Hz) |
50Hz |
50Hz |
50Hz |
|
Rated Input Current
(A) |
41 A |
24 A |
33 A |
|
Power (KVA) |
9 KVA |
17.3 KVA |
23.7 KVA |
|
No Load Voltage (V) |
65 V DC |
80 V DC |
80 V DC |
|
Output Current Range
(A) |
10-200 A DC |
20-400 A DC |
20-500 A DC |
|
Rated Output Voltage
(V) |
18 V DC |
32 V DC |
34 V DC |
|
Duty Cycle @ 40dc (%) |
60% |
60% |
60% |
|
No Load Loss (W) |
20 W |
80 W |
80 W |
|
Efciency
(%) |
83% |
83% |
83% |
|
Power Factor (PF) |
0.8 |
0.95 |
0.95 |
|
Arcing Way |
High Frequency |
High Frequency |
High Frequency |
|
Insulation
Grade |
F Class |
FClass |
FClass |
|
Protection
Class |
IP21S |
IP21S |
IP21S |
|
Pre Flow Time (Sec.) |
0.1-1.5 Sec. |
0.1-1.5 Sec. |
0.1-1.5 Sec. |
|
Post Flow Time (Sec.) |
0.1-5 Sec. |
0.1-5 Sec. |
0.1-5 Sec. |
|
Down Slope (Sec.) |
0.1-10 Sec. |
0.1-10 Sec. |
0.1-10 Sec. |
|
Nett. Weight Power Source (Kg.) |
6.7 kg. |
40 Kg. |
55 Kg. |
|
Dimensions
(mm) |
384x160x300 |
520x260x360 |
520x260x360 |
FEATURES
·
Compact Size,
Lightweight & Power Saving.
·
Trigger Mode 2 Step & 4 Step
·
Strong Current Output, Superior MIG/MAG
& MMA Welding process.
·
Step less Adjustment of Current & Voltage in a wide range.
·
Digital Display for Accurate Parameter Preset.
·
Suitable for
Mild Steel, Alloy Steel &
Stainless Steel etc.
·
Enhanced and efficient Soft Switching Invertor Components.
·
Machine having functions of
Pre flow, Post flow, Upslope, Downslope & hot start.
·
Spot TIG Welding.
